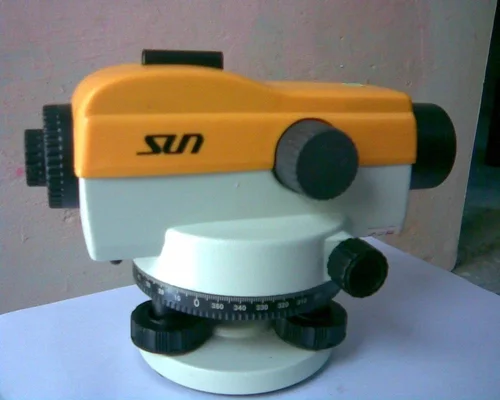

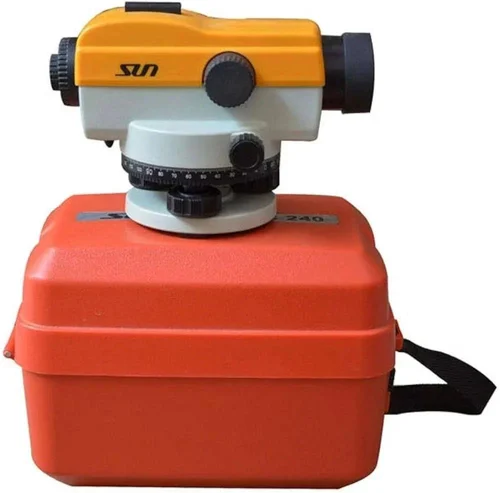

Auto Level For Survey Lab
₹14,950
Product Code :
| Magnification | 24X |
|---|---|
| Accuracy per km | 1.5 mm |
| Compensator range | ±15 arc min |
| Objective aperture | 32 mm |
| Shortest focus | 1.5 m |
| Dust water rating | IP55 |
| Includes tripod | Yes |
| Includes staff | Yes |
| Model | DSC 240A |
| Telescope | |
| Length | 215mm |
| Magnification | 24x |
| Objective aperture | 32mm |
| Resolving power | 4″ |
| Field of View (at 100m/328ft.) |
1°25′ (2.5m / 8.2ft.) |
| Minimum focus | 0.2m from end of telescope 0.3m from instrument center |
| Image | Erect |
| Reticle pattern | Cross line |
| Stadia constant | 0 |
| Stadia ratio | 100 |
| Focusing knob | 1-speed |
| Sighting aid | Gun sight |
| Lens hood | – |
| Accuracy (standard deviation for 1km double run leveling) | |
| Without micrometer | 2.0mm (0.08in.) |
| With micrometer | – |
| Compensator | |
| Type | Pendulum compensator with Air damping system |
| Setting accuracy | 0.5″ |
| Working range | ±15′ |
| Circular level | |
| Sensitivity | 10′ / 2mm |
| Mirror | Plane mirror |
| Horizontal circle | |
| Diameter | 103mm |
| Graduations | 1° / 1gon |
| General | |
| Horizontal motion drive | Clampless, endless, double-sided knobs |
| Water resistance | IPX6 (EC 60529:2001) |
| Operating temperature | -20 to +50°C (-4 to +122°F) |
| Width | 130mm |
| Length | 215mm |
| Height | 135mm |
| Weight | 1.7kg |
